Frient Vibration Sensor -FRIZWISZB-137

Für eine deutsche Übersetzung Klicken Sie hier

For more information about the product follow the respective links:

• Multilanguage User Guide

Precautions

• When removing cover for battery change - electrostatic discharge can harm electronic components inside.
• Always mount indoors as the sensor is not waterproof..

Join to Network

1. Open the casing of the device by pushing the fastening on top of the device to remove the front panel from the back cover.
2. Insert the enclosed batteries into the device, respecting the polarities
3. Close the casing
4. The vibration sensor will now start searching (up to 15 minutes) for a Zigbee network to join.
5. Make sure that the Zigbee network is open for joining devices and will accept the vibration sensor.
6. While the vibration sensor is searching for a Zigbee network to join, the red LED is flashing.
7. When the red LED stops flashing, the vibration sensor has successfully joined the Zigbee network.

Placement

• Place the sensor indoors at a temperature between 0-50°C.

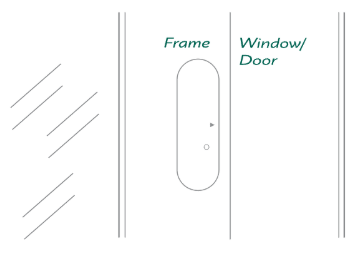

• The magnet has to be placed on that side of the sensor which is marked with a small triangle.
• The magnet and sensor also have to be aligned/centered thickness-wise on as similar a level as possible.
• In case of a weak or a bad signal, change the location of the vibration sensor or strengthen the signal with a smart plug.

Mounting

• Clean the surface before mounting.

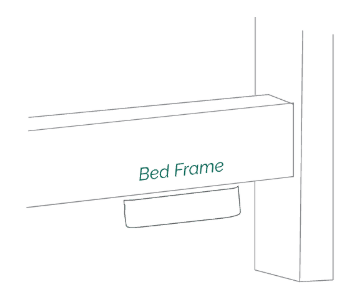

• The vibration sensor should be mounted to the frame, bed, pipe, or other surface, using the double stick tape, already applied on the back of the sensor. Press firmly to secure sensor.

Reset your device

Resetting is needed if you want to connect your vibration sensor to another gateway or if you need to perform a factory reset to eliminate abnormal behaviour.

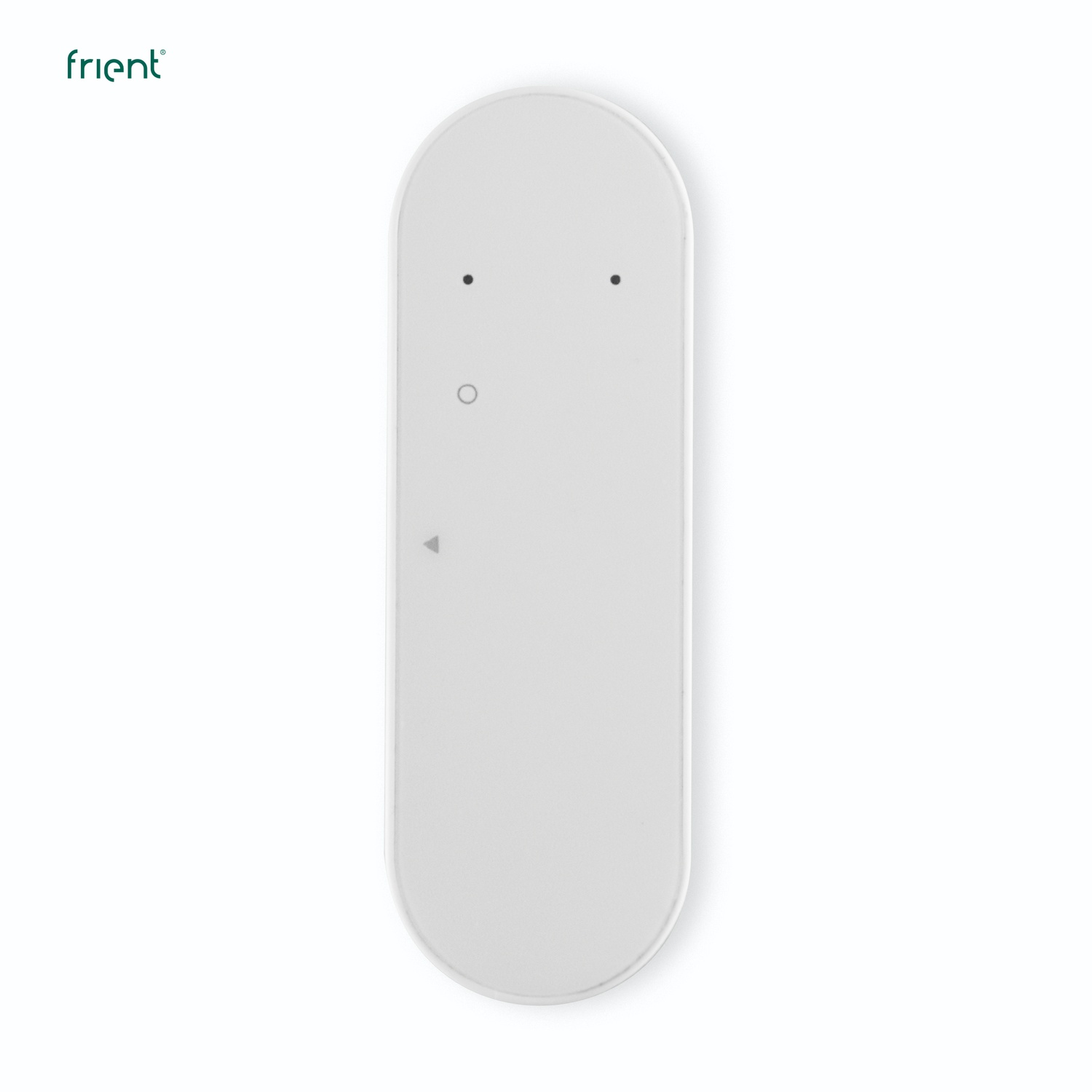

The reset button is marked with the small ring on the front of the sensor.

STEPS FOR RESETTING

1. Press and hold down the reset button for approximately 14 - 16 seconds.
2. While you are holding the button down, the LED first flashes once, then two times in a row, and finally numerous times in a row.
3. Release the button while the LED is flashing numerous times in a row.
4. After you release the button, the LED shows one long flash, and the reset is completed.

Modes

• SEARCHING GATEWAY MODE - Red flashes every second for a longer period, means that the device is searching for a gateway.
• LOST CONNECTION MODE - When the red LED flashes 3 times, it means that the device has failed to connect to a gateway.
• LOW-BATTERY MODE - Two consecutive red LED flashes every 60 seconds, means that the battery should be replaced.

Fault-finding

• In case of a bad or weak signal, change the location of the vibration sensor. Otherwise, you can relocate your gateway or strengthen the signal with a smart plug.
• If the search for a gateway has timed out, a short press on the button will restart it.

Battery replacement

1. Open the casing of the device by pushing the fastening on top of the device to remove the front panel from the back cover.
2. Replace the batteries, respecting the polarities. The vibration sensor uses 2xAAA batteries.
3. Close the casing.
4. Test the vibration sensor.

Specifications:

• Frequenz: Zigbee 3.0
• Battery: 2x AAA LR3
• Battery life: 2 years
• IP-Class: IP40
• Operation Temperature: 0 to 50°C
• Dimensions:
  Sensor: 76 x 26 x 17 mm
• Relative humidity: 5% - 85%, non condensing
• Color: White
• Temperature sensor range: 0 to +50°C
• Resolution: 0.1°C (accuracy ± 0.5°C)
